gizmo jib technical data

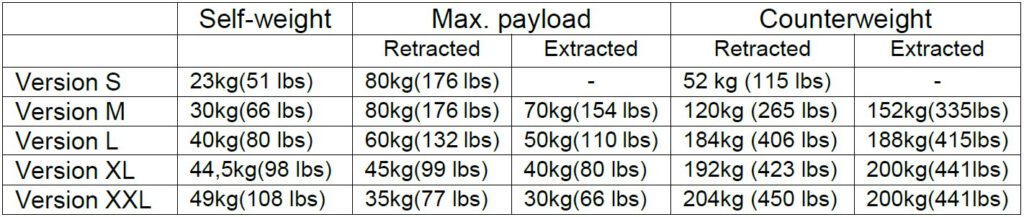

Tabelle_Gizmo_Versionen
Gizmo Camera Jib - Self-Weight, Maximal Payload, Counterweight

Version S

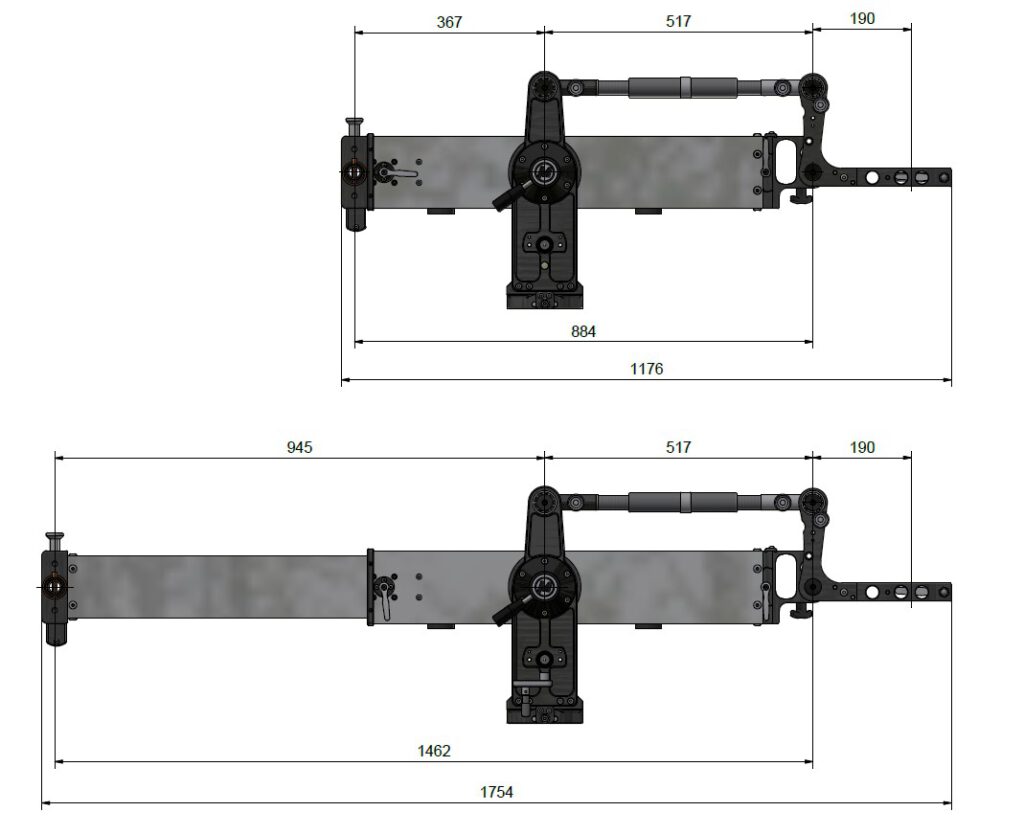

Zeichnung_S_Gizmo_Jib

FRONT ARM:
707 mm

PAYLOAD:
up to 80 kg

SELF WEIGHT:
23 kg

Version M

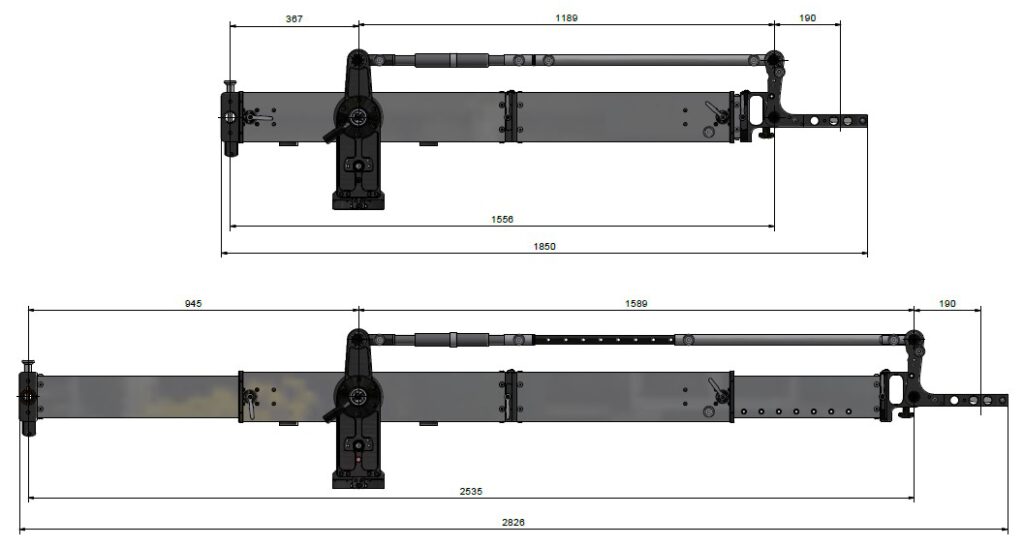

Zeichnung_M_Gizmo_Jib

FRONT ARM:
1379 mm – 1779 mm

PAYLOAD:
80 kg – 70 kg

SELF WEIGHT:
30 kg

Version L

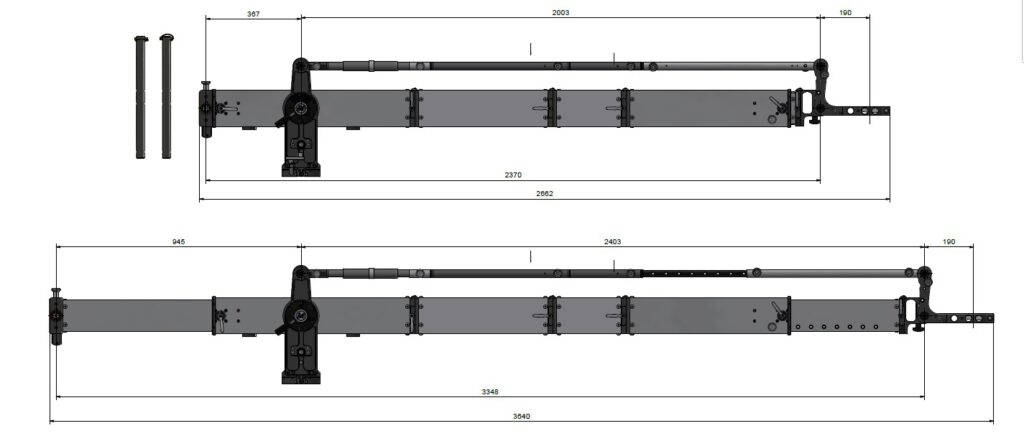

Zeichnung_L_Gizmo_Jib

FRONT ARM:
2193 mm – 2593 mm

PAYLOAD:
60 kg – 50 kg

SELF WEIGHT:
40 kg

Version XL

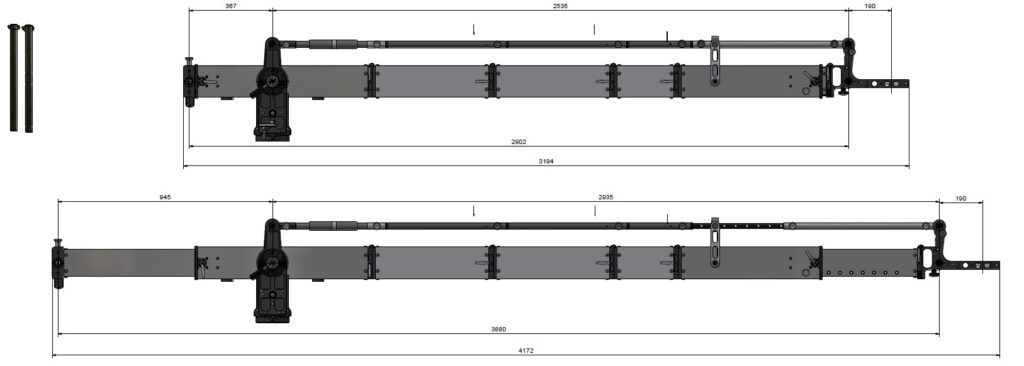

Zeichnung_XL_Gizmo_Jib

FRONT ARM:
2725 mm –  3125 mm

PAYLOAD:
45 kg – 40 kg

SELF WEIGHT:
44,5 kg

Version XXL

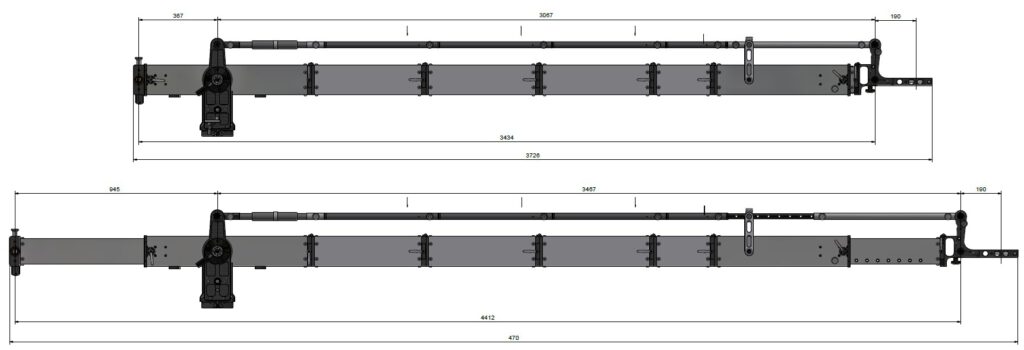

Zeichnung_XXL_Gizmo_Jib

FRONT ARM:
3257 mm – 3657 mm

PAYLOAD:
35 kg – 30 kg

SELF WEIGHT:
49 kg
